Nextion library doesn´t work with UNO

For hours i tried to use my Nextion Display with an UNO Board.

So i downloaded the Nextion library and tried to compile the button example.

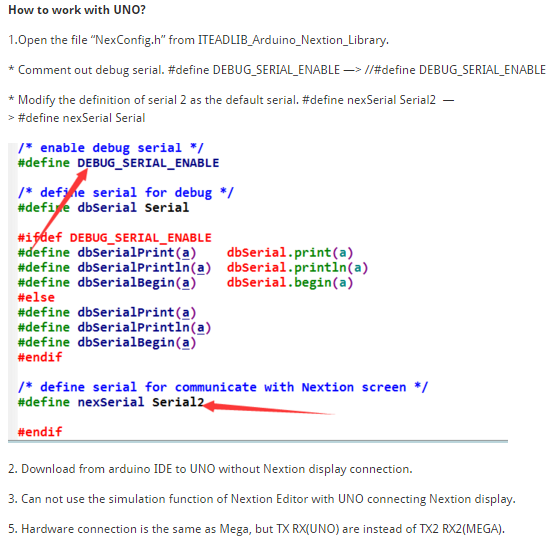

It stopped compiling with a long error message. I tried to solve the problem an found settings for the uno on the ITEAD homepage:


After typing the new settings given in the picture, i tried to compile again. the compiler works without error messages.

so i connected my UNO on the PC an tried to compile and upload. Compiling worked, but the upload takes 5 minutes until it stopped without success.


What did i do wrong?


I spent hours to solve this problem. So i decided to make this topic on this forum. Can anybody help me?


Here is the error message after stopping the upload:




1 person likes this idea

For days i tried to use my Nextion Display with an NANO Board, as detail:

-Upload the example sketch into Arduino booard ( after modify 2 line in the Nexconfig.h)

-Build a project in Nextion editor correspond to example ( correct ID and click send component ID) and upload in the Nextion display.

-Connect them together and make a test. But the number(0) in the Nextion display not change to 50 and then also not change upon the + or- button.

I dont know what wrong? please show me what i can do to make them work. Thank you so much.


ino

yaa that was my typing mistake

And so?

You removed the point?

thank u maratk for your reply.....


i was download the i tead nextion lib, then i copy into installation disk-->ardiuno-->library.


then i try the example program.. then i got these error..



Yuva Raj, how do you set the library? Added archive through the Arduino IDE?


Here is the error. The point is not needed:

#include <Nextion.h(.)>


If does not work, try to replace #include <Nextion.h> on #include "Nextion.h"

plz anybody help me



friendzzz...... please help me....

i'm using ardiuno uno with nextion HMI display. i need to interface that, i downloaded the library as you referred that and i also was makes as you said changes, but i get these error......  please soul this...



  Arduino: 1.8.1 (Windows 7), Board: "Arduino/Genuino Uno"



C:\Program Files (x86)\Arduino\libraries\ITEADLIB_Arduino_Nextion\examples\CompButton\CompButton_v0_32\CompButton_v0_32.ino:20:22: fatal error: Nextion.h.: No such file or directory



 #include <Nextion.h.>



                      ^



compilation terminated.



exit status 1

Error compiling for board Arduino/Genuino Uno.



This report would have more information with

"Show verbose output during compilation"

option enabled in File -> Preferences.


Hi, Baarini. Try to delete files NexUpload.cpp & NexUpload.h

Hey Rod,


I've downloaded the Nextion Library files from github (https://github.com/itead/ITEADLIB_Arduino_Nextion) & pasted them in Arduino libraries folder, then, I copied & replaced your files (SoftwareSerial.h & SoftwareSerial.cpp & Nexconfig.h & NexHardware.cpp) in the Arduino libraries folder & I run the CompNumber example on a UNO board. I got the below errors.

what is wrong with it?

Thank you


C:\Users\Documents\Arduino\libraries\ITEADLIB_Arduino_Nextion_master\NexUpload.cpp: In member function 'bool NexUpload::_searchBaudrate(uint32_t)':

C:\Users\Documents\Arduino\libraries\ITEADLIB_Arduino_Nextion_master\NexUpload.cpp:111:5: error: 'nexSerial' was not declared in this scope

     nexSerial.begin(baudrate);

     ^

C:\Users\Documents\Arduino\libraries\ITEADLIB_Arduino_Nextion_master\NexUpload.cpp: In member function 'void NexUpload::sendCommand(const char*)':

C:\Users\Documents\Arduino\libraries\ITEADLIB_Arduino_Nextion_master\NexUpload.cpp:125:12: error: 'nexSerial' was not declared in this scope

     while (nexSerial.available())

            ^

C:\Users\Documents\Arduino\libraries\ITEADLIB_Arduino_Nextion_master\NexUpload.cpp:130:5: error: 'nexSerial' was not declared in this scope

     nexSerial.print(cmd);

     ^

C:\Users\Documents\Arduino\libraries\ITEADLIB_Arduino_Nextion_master\NexUpload.cpp: In member function 'uint16_t NexUpload::recvRetString(String&, uint32_t, bool)':

C:\Users\Documents\Arduino\libraries\ITEADLIB_Arduino_Nextion_master\NexUpload.cpp:145:16: error: 'nexSerial' was not declared in this scope

         while (nexSerial.available())

                ^

C:\Users\Documents\Arduino\libraries\ITEADLIB_Arduino_Nextion_master\NexUpload.cpp: In member function 'bool NexUpload::_setDownloadBaudrate(uint32_t)':

C:\Users\Documents\Arduino\libraries\ITEADLIB_Arduino_Nextion_master\NexUpload.cpp:183:5: error: 'nexSerial' was not declared in this scope

     nexSerial.begin(baudrate);

     ^

C:\Users\Documents\Arduino\libraries\ITEADLIB_Arduino_Nextion_master\NexUpload.cpp: In member function 'bool NexUpload::_downloadTftFile()':

C:\Users\Documents\Arduino\libraries\ITEADLIB_Arduino_Nextion_master\NexUpload.cpp:211:21: error: 'nexSerial' was not declared in this scope

                     nexSerial.write(c);

                     ^

C:\Users\Documents\Arduino\libraries\ITEADLIB_Arduino_Nextion_master\NexUpload.cpp:225:17: error: 'nexSerial' was not declared in this scope

                 nexSerial.write(c);

                 ^



ino
(2.83 KB)
h
cpp
cpp
h
(1.28 KB)

2 people like this

Just to note that, on UNO boards, when using multiple software serial ports, SoftwareSerial.h allows only 1 software TX/RX port at a time. and, pin # 13 cannot be used. this includes also some limitations on baudrate used ( it shall be <57600)


you may refer to:

https://www.arduino.cc/en/Reference/SoftwareSerial

It's because the editor needs to talk directly to the display via serial port.

I would use the sdcard. serial is soooo slow.

Rod


Hello I had the same issues about nextion library with the uno and found the files helped but when I tried to upload on the editor to the display it would not connect unless I first put a blank sketch into the uno with the adruino compiler ,does anyone know why I had to do this.

Hey Rod,


thanks a lot !!! It works!!!


Now i can start to experiment with the nextion display.



Thanks a lot Rod! I will try this when i am at home and give some feedback....


1 person likes this

Hey Joachim,

With the uno you need to use software serial. See here.

http://support.iteadstudio.com/support/discussions/topics/1000065555


Copy these NexConfig.h , NexHardware.cpp , SoftwareSerial.cpp and SoftwareSerial.h and replace yours.

So your display will run off software serial. RX is pin 10 TX is pin 11. You can change that in the Hardware.cpp file.
There is no dbSerial unless you want to setup another softwareSerial port for it.


And normal Serial is talking to the Uno.


I was where you wer last week. We now use a Arduino mega pro min.


Rod

h
cpp
cpp
h
(1.28 KB)

4 people like this
